Details

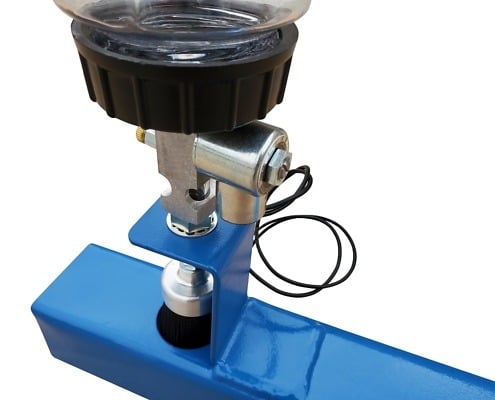

Automatic Lubricator | Brush Style | Includes Mounting Bracket and 1′ Section of Unibilt Enclosed Track
The Ultimation U11133 automatic lubricator is the ideal solution for keeping your Unibilt chain and trolleys lubricated and running smoothly. The brush-style lubricator drip-feeds the lubricant from the glass receptacle into the brush head, which then brushes the lubricant onto the trolley wheels or chain as they moved through the connected portion of the track. Including a “Z” style mounting bracket and a 1′ Unibilt track section, this bundle fits perfectly into most Unibilt overhead conveyor systems. This brush-type automatic lubricator is the perfect component for providing oil lubrication to the guide and load wheel bearings, as well as to each pivot in the chain assembly. Engineered with an electric On/Off valve, this automatic lubricator can be adjusted to operate automatically when the conveyor is running.
Looking for the manual version of this lubricator? Find it here!
Features and Dimensions of U11133:
- Automatic brush-style lubricator for Jervis Webb Unibilt overhead systems
- Electric On/Off valve
- Adjustable brush height to accommodate various Unibilt chain and trolleys
- One quart transparent oil reservoir and visual sight gauge for oil feed
- Includes a “Z” style mounting bracket pre-welded to a 1′ piece of Unibilt enclosed track
- Powder-coat Unibilt blue finish on bracket and track portion
- Sealed opening on top of glass receptacle to easily refill lubricant
The importance of keeping your Unibilt system lubricated:
Proper lubrication is necessary to decrease system wear and tear, which can lead to unnecessary maintenance. Ensuring that your chain assembly, guide wheel bearings, and load wheel bearings are lubricated is essential in maintaining the low friction of the conveyor system itself. Ignoring the lubrication requirements of your Unibilt system can also negatively affect the chain pull of your system; the effort necessary to maintain the normal operating speed of your system under a load. Keeping your Jervis Webb Unibilt overhead conveyor system properly lubricated is non-negotiable, and will ultimately extend the life of the system itself. The U11133 is designed with a transparent, one quart oil reservoir, as well as a visual sight gauge for oil feed, so you can easily determine whether or not you need to refill the reservoir.
Part Number: U11133, MPN: UI11133, GTIN: 00818070026871
