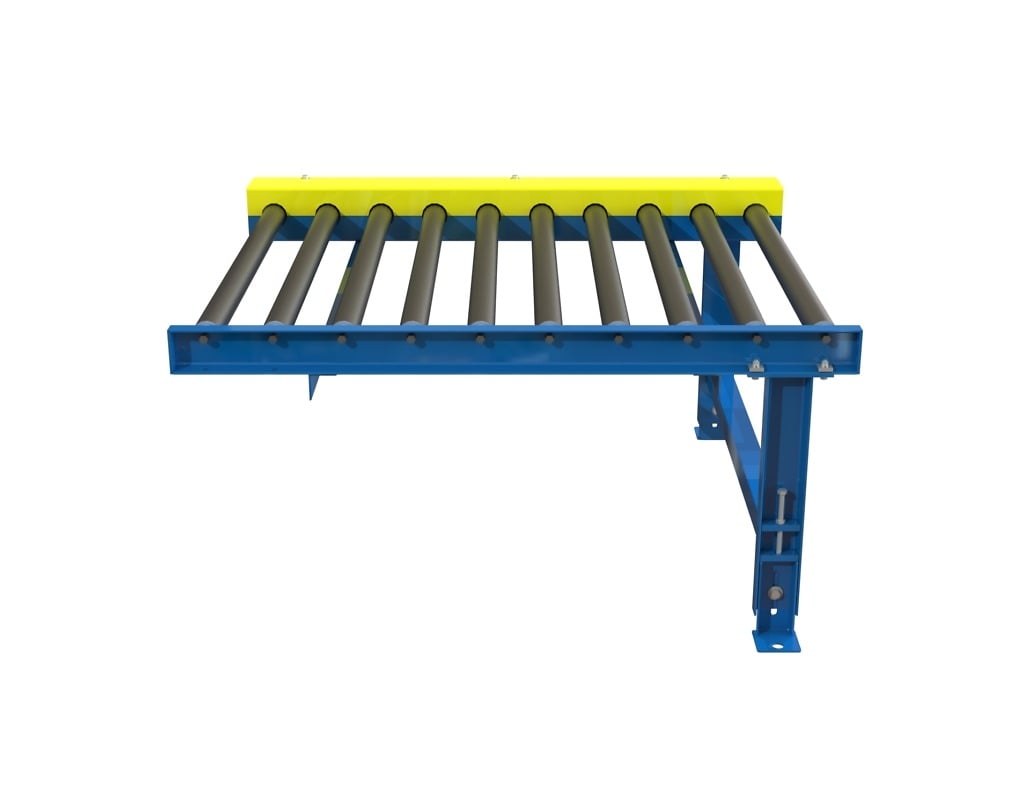

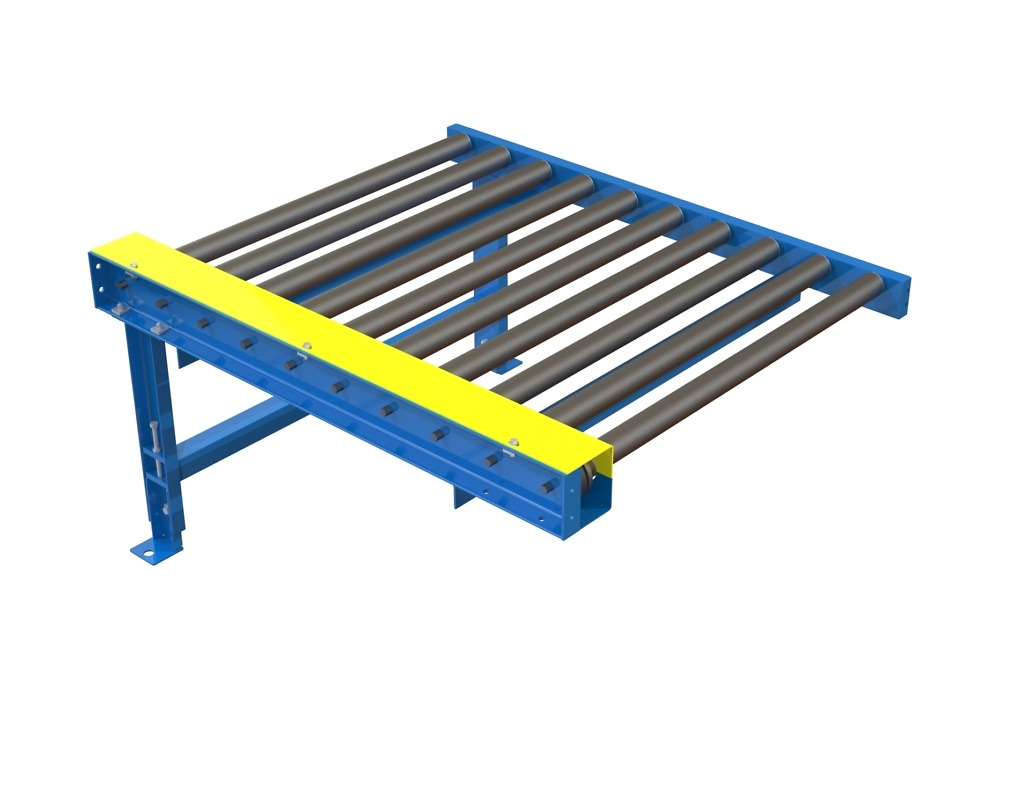

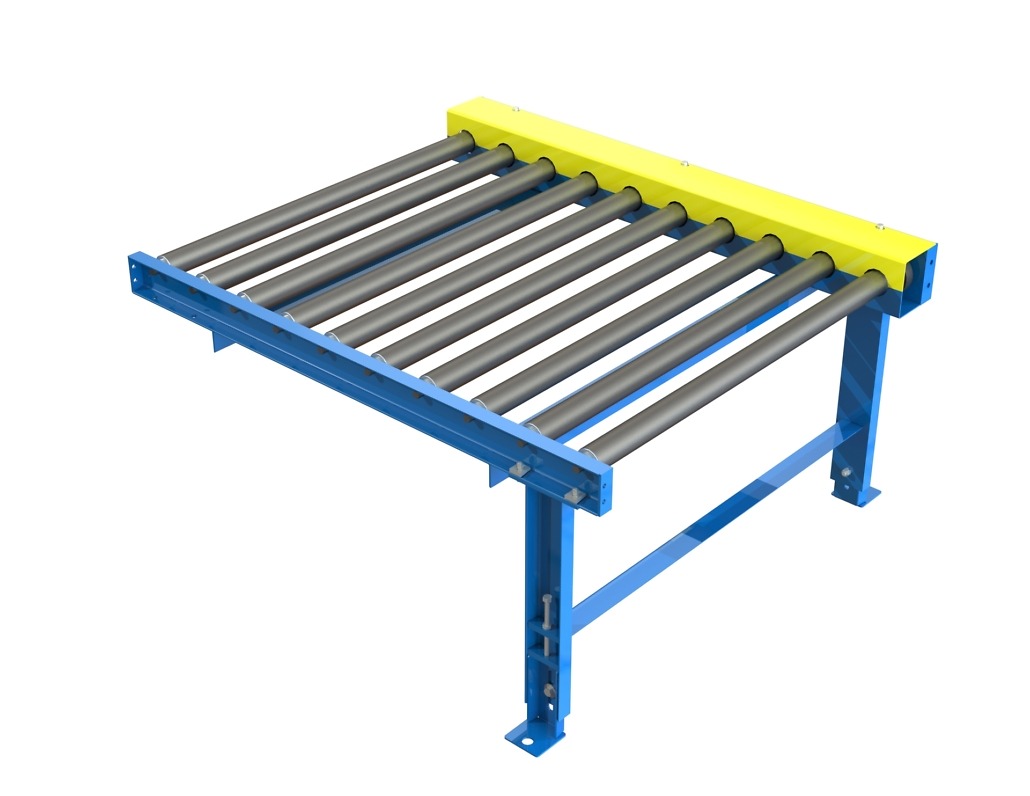

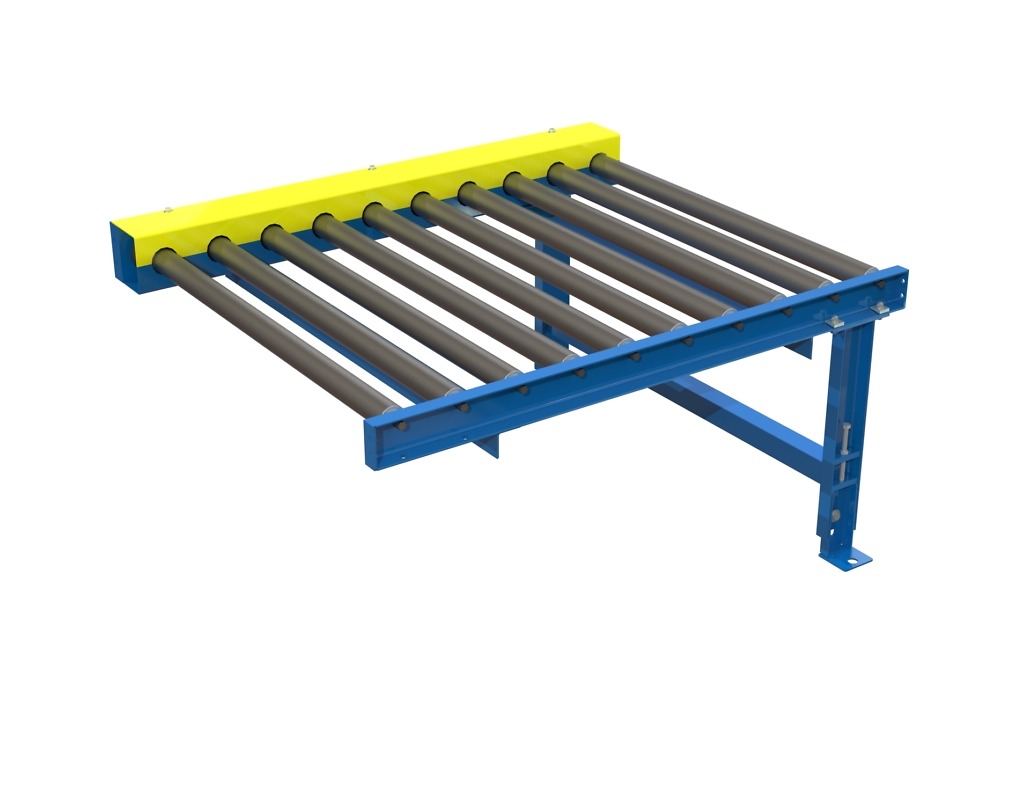

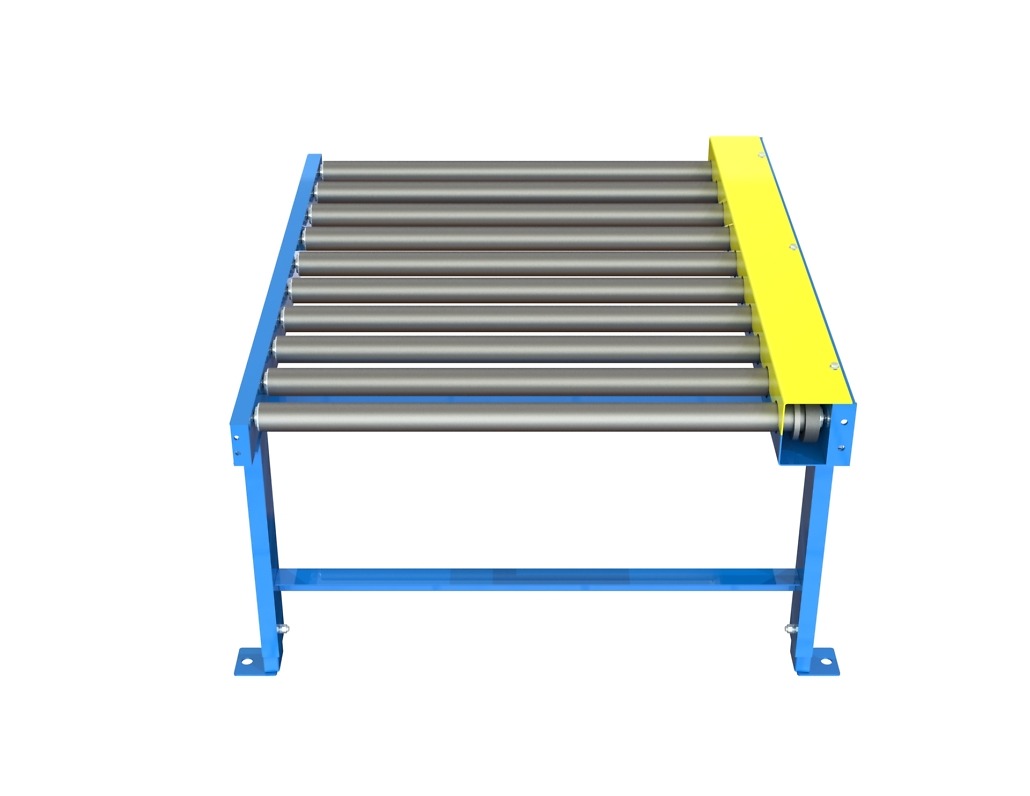

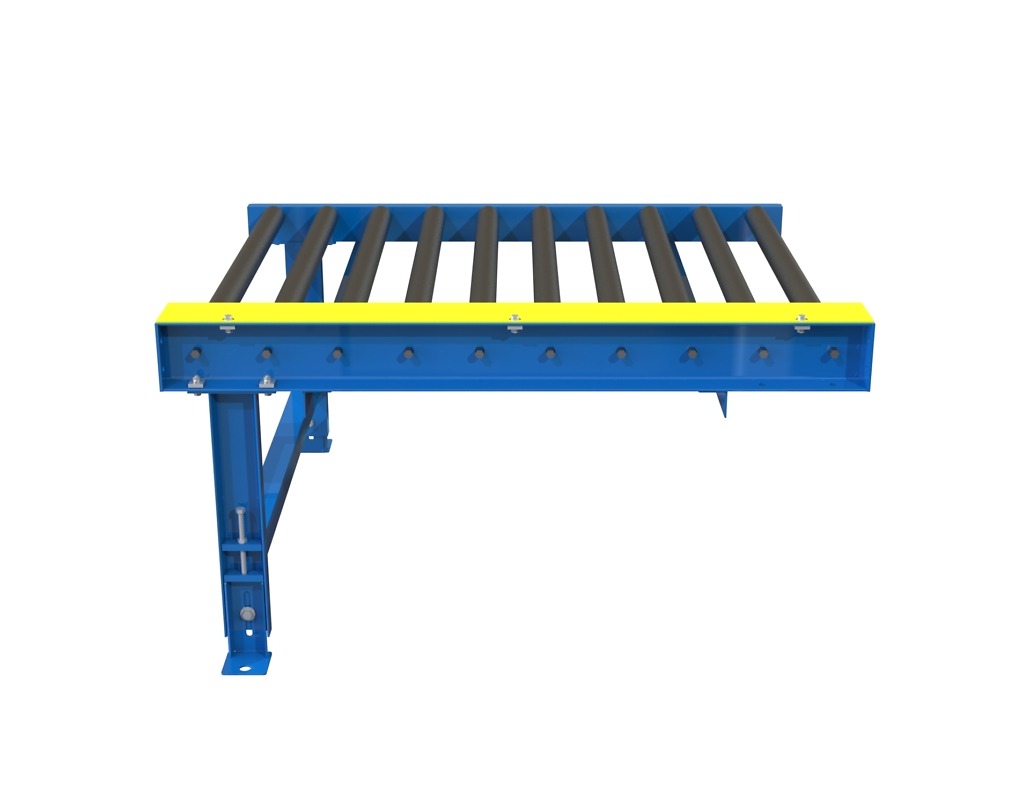

CDLR Conveyor Idler | Chain Driven Live Roller | Leg Included | Motorless | 44″ EW x 48″ BF x 56.876″ OAW x 5′ L | 6” Centers
Ultimation’s Chain Driven Live Roller Conveyor Idler (CDLR Conveyor Idler) is an ideal solution for transporting products such as pallets, drums, crates, and other heavy items. This plug-and-play heavy-duty CDLR has a sleek powder-coated Ultimation Blue finish with Safety Yellow guards. With a Jackbolt conveyor support that measures 30” high and adjust +/- 2”; this CDLR is the perfect solution for warehousing & distribution applications, automotive applications, manufacturing applications, and more.
Please note that this CDLR model is an idler, meaning there is no motor included with this conveyor. This CDLR conveyor idler section is designed to work in conjunction with motorized chain driven live roller conveyors.
Features and Dimensions of this CDLR Conveyor:
- 44” effective width
- 5’ overall length
- Powder-coated structural steel channel frames: 6″ x 8.2# and 4″ x 5.4#
- 650lb maximum capacity per foot
- Made in the USA
- Paint Color: Ultimation Blue with Safety Yellow guards
- 2-1/2″ dia x 11 ga. unplated steel rollers, 11/16″ hex axle, spring retained, sealed greased bearings
- 610lb capacity per roller
- 60 series roller chains on 6” centers
- Includes (1) 4″ x 5.4# structural channel leg support for 30″ top of roller with a jackbolt foot allowing for +/- 2” adjustments
Why use chain driven live roller (CDLR) conveyors?
The sprocketed rollers and roll to roll chain system provide positive driving power to the product. Multiple lengths and configurations make the CDLR a versatile conveyor. The chain driven live roller conveyor design also makes this conveyor suitable for oily conditions which other conveyors may not be suitable for. CDLR systems include straights, curves and square 90 degree corners. CDLR conveyor idler sections are also available, these are unpowered (motorless) CDLR sections that are used in conjunction with powered (motorized) sections. Pop-up transfer systems allow loads to move off the main conveyor at a 90 degree angle, for example where one wheel goes to one side of the line and the next wheel goes to the other side.
Looking for a powered CDLR section that pairs with this CDLR Idler section? Find them here!
Part Number: UCDLR25-ID-44-6-5, MPN: UIUCDLR25-ID-44-6-5, GTIN: 00818070027045
