Itoh Denki Multi-Angle Ball Sorter | Conveyor Sortation Module

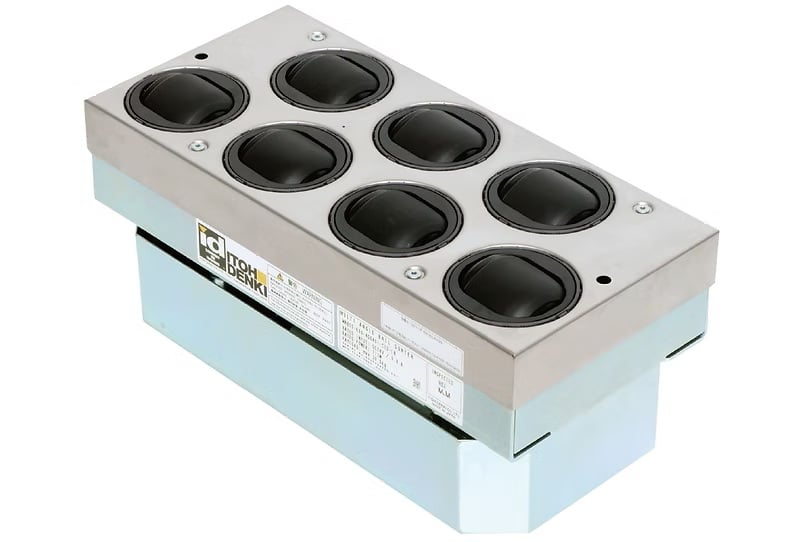

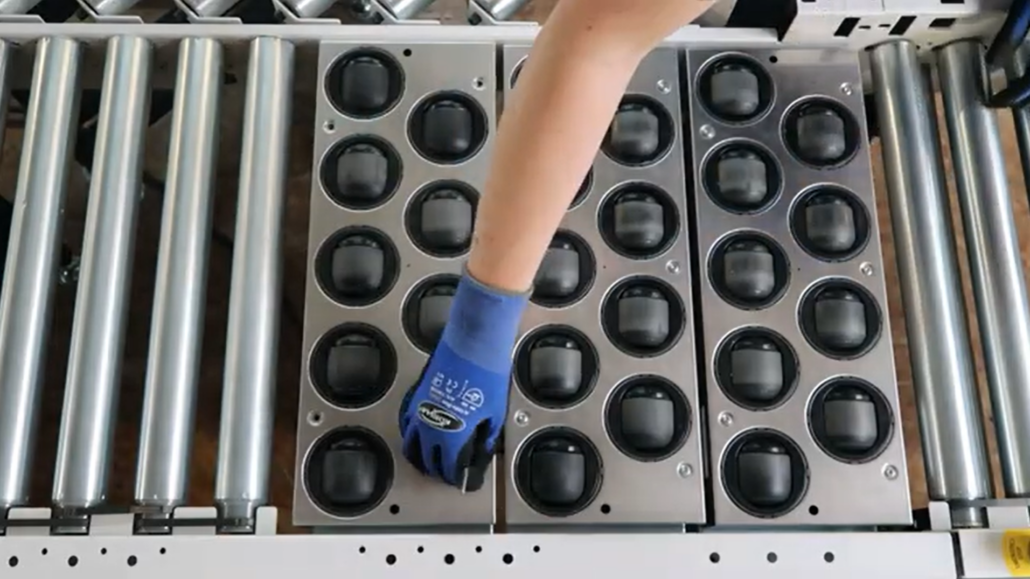

Transfer articles at any specified angle with the Itoh Denki Multi-Angle Ball Sorter (MABS2). The Itoh Denki MABS2 is powered by two low-voltage 24V DC MDRs, making it a cost-effective conveyor diverter module. Eliminating pneumatics in favor of MDR technology significantly reduces the need for ongoing maintenance. Its modular design allows easy drop-in installation into your existing conveyor frames. Remember to mount the included Itoh Denki stays before placing the MABS2 module on the conveyor and bolting it onto the frame.
Read the complete installation guide on pages 31-33 of Itoh Denki MABS2 manual on the downloads tab. If anything other than designated stays have been used, the manufacturer warranty will not be applied.
Place two or more modules end-to-end to accommodate larger packages. This allows you to easily scale your conveyor diverter module to adjust to changing operational needs.

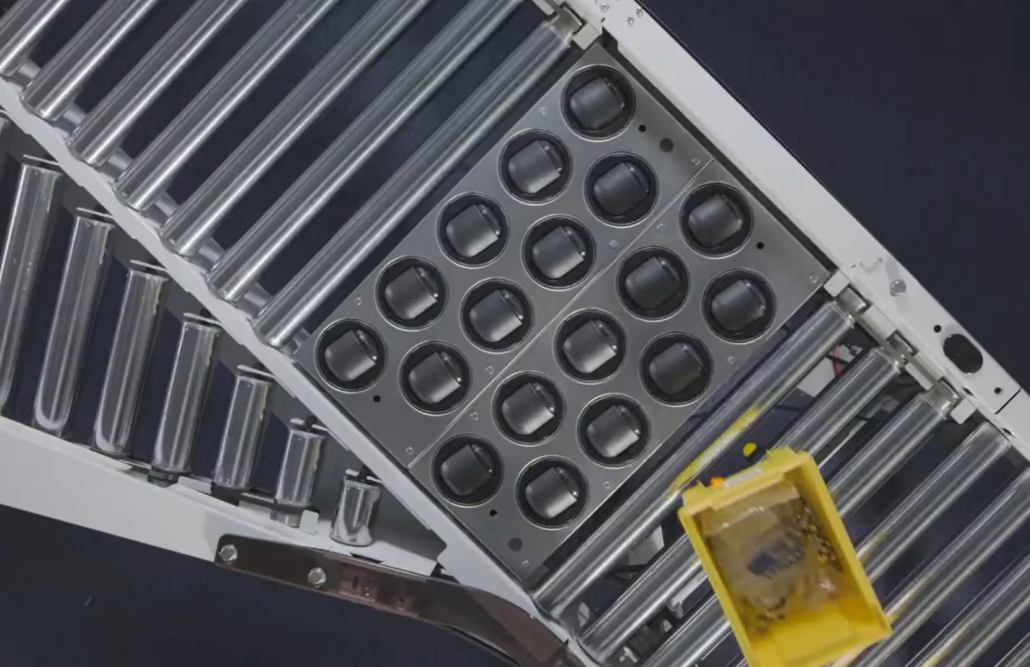

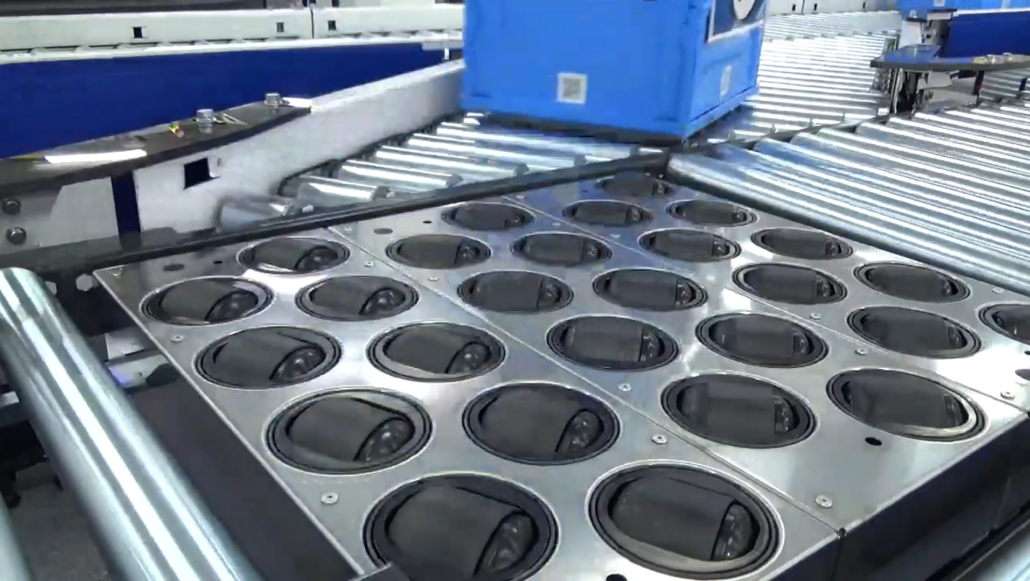

The Itoh Denki MABS2 functions as a flexible ball transfer sorter by reorienting and diverting packages. Unlike traditional pop up transfers, its multidirectional rollers remain flat on the surface which enables a smooth transfer. Photo eye sensors detect each package, and the driver cards signal the MABS2 to automatically route each package to a direction configured by the operator via the PLC.

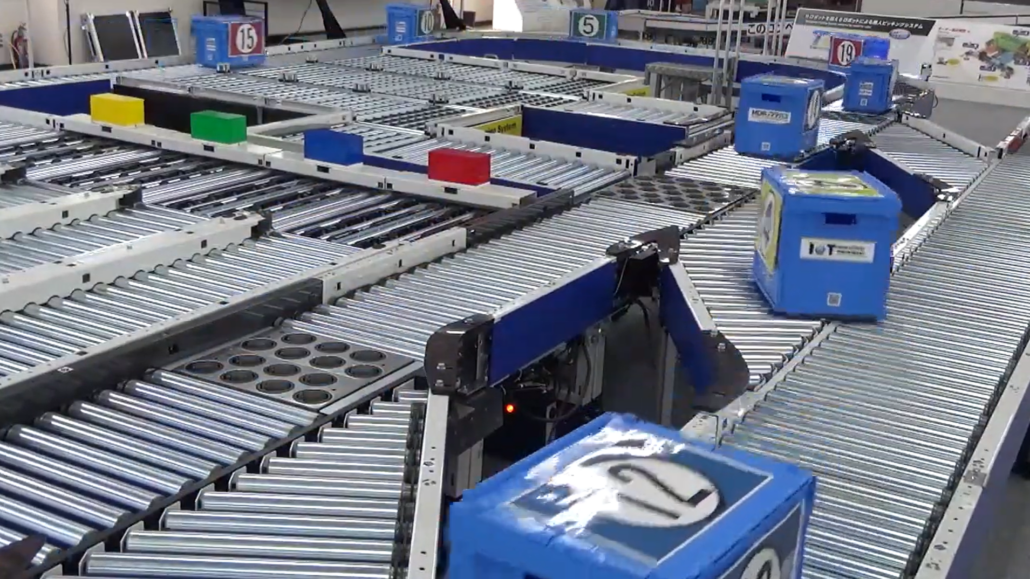

The MABS2 conveyor sortation module integrates seamlessly with Itoh Denki-powered conveyors such as the Ultimation Itoh Denki Powered Roller Conveyors. Control these units using the Itoh Denki IB-E04F or IB-E06F-UL-M1 driver cards, and connect them with the IB-E Basic Connector Kit. Driver cards and connector kits sold separately.
Key Features of the Itoh Denki MABS2
- Low voltage 24V DC
- Drop-in installation into existing conveyor frames
- Can transfer packages at any specified angle, including 30, 45, and 90 degrees
- Simplified transfer using 2 MDRs, eliminating pneumatics
- Scalable – place multiple MABS2 units next to each other to create a larger transfer surface
- Run on demand technology
- Zero Pressure Accumulation (ZPA)
- Incredibly high throughput of up to 4300 cases per hour
- Controlled with Itoh Denki IB-E04F or IB-E06F-UL-M1 driver cards (sold separately)
Standard Specifications
- Model Number: 400
- Size: W 186 mm (7.32”) x L 398 mm (15.66”)
- Min. Package Size: 225 mm x 225 mm (8.8″ x 8.8″)
- Max. Package Size: W 300 mm (11.8″) X L 650 mm (25.59″)
- Max. Load Weight: 1 unit – 66lbs., 8 units – 528 lbs.
- Roller diameter: (2) 57.0 mm
- Length (L) spine direction: 186 mm (7.3″)
- Module height: 175 mm (6.89”)
- Line speed: 295 FPM
- Power voltage: 24V DC
- Ambient temperature: 32~104°F (0~40°C)
- Humidity: below 90% RH (no condensation)
- Atmosphere: no corrosive gas
- Vibration: below 0.5G
- Installation: indoor
Watch The Itoh Denki MABS2 In Action
Looking for a different size? Browse the other available size options below and complete our quote form or contact our sales team.
Other Models and Sizes
| Model Number | MABS2 Size | Maximum Package Size |
| 400 | W 398 mm (15.7”) X L 186 mm (7.3”) | W 300 mm (11.8″) X L 650 mm (25.59″) |
| 500 | W 498 mm (19.6”) X L 186 mm (7.3”) | W 400 mm (15.8″) X L 650 mm (25.59″) |
| 600 | W 598 mm (23.5”) X L 186 mm (7.3”) | W 500 mm (19.7″) X L 650 mm (25.59″) |
| 700 | W 698 mm (27.5”) X L 186 mm (7.3”) | W 600 mm (23.6″) X L 650 mm (25.59″) |
| 800 | W 798 mm (31.4”) X L 186 mm (7.3”) | W 700 mm (27.6″) X L 650 mm (25.59″) |
SKU: MABS2
MABS2 User Manual
