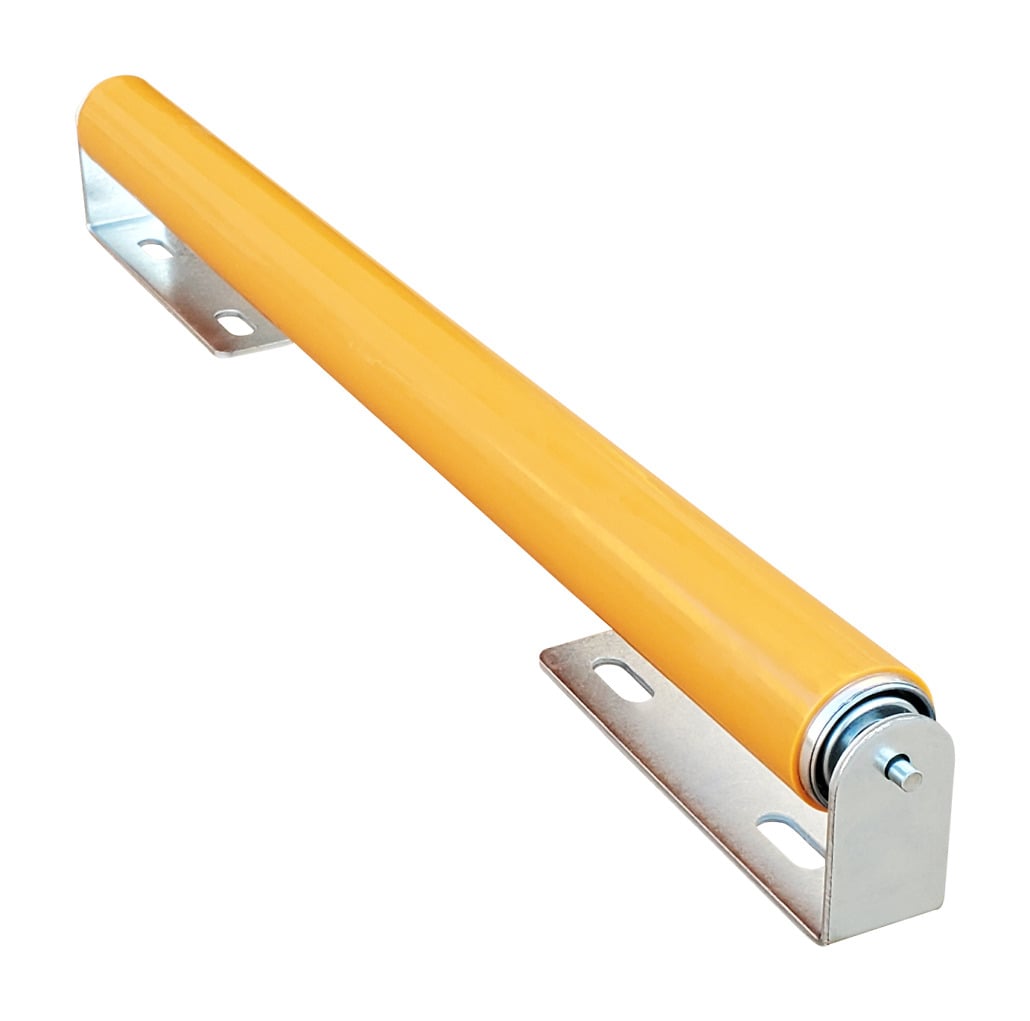

Polyurethane Coated Roller with Brackets | 22″ Between Frame | 1.5″ Diameter

Details

Polyurethane Coated Roller with Brackets | 22″ Between Frame | 1.5″ Diameter

The Ultimation polyurethane-coated roller with bracket set is an affordable solution to expand your workspace! Create a roller conveyor, woodworking infeed/outfeed roller stand, or other workspaces. Durable, 100-pound capacity. The conveyor roller is spring-loaded on one end and is removable from the brackets for replacement. Includes pre-installed polyurethane roller cover for gripping of product. Polyurethane sleeves can be used in the temperature range of -80°F to 200°F (-62°C to 93°C).

• Roller set includes: (1) 1.562″ diameter including sleeve x 22″ galvanized roller with pre-installed polyurethane cover, and (2) mounting brackets
• 100-pound max. load capacity
• Polyurethane covers are temperature rated for operation within -80°F to 200°F (-62°C to 93°C)
• Overall height from the bottom of the bracket to the top of the roller is 2.75″
• Weight: 3 pounds
• Mounting hardware is not included
• Bracket specifications:
  • Fits 1/4″ round axle
  • (2) slotted mounting holes, 13/32″ opening for 3/8″ screws or bolts
  • Galvanized steel construction
• Roller Specifications:
  • 16ga. galvanized steel tube
  • Pre-installed polyurethane cover measuring .062″ thick
  • 22″ between frame roller
  • Crimped, oiled bearings
  • 1/4″ diameter mild steel axle, 23″ long
  • Spring-retained on one end for easy assembly and replacement

To see more conveyor rollers and roller bracket sizes we stock, please click here.

Part Number: 150R-22-BR-UR, MPN: UI150R-22-BR-UR, GTIN: 00818070025553
