Ultimation Spring-Assisted Gravity Conveyor Lift Gate

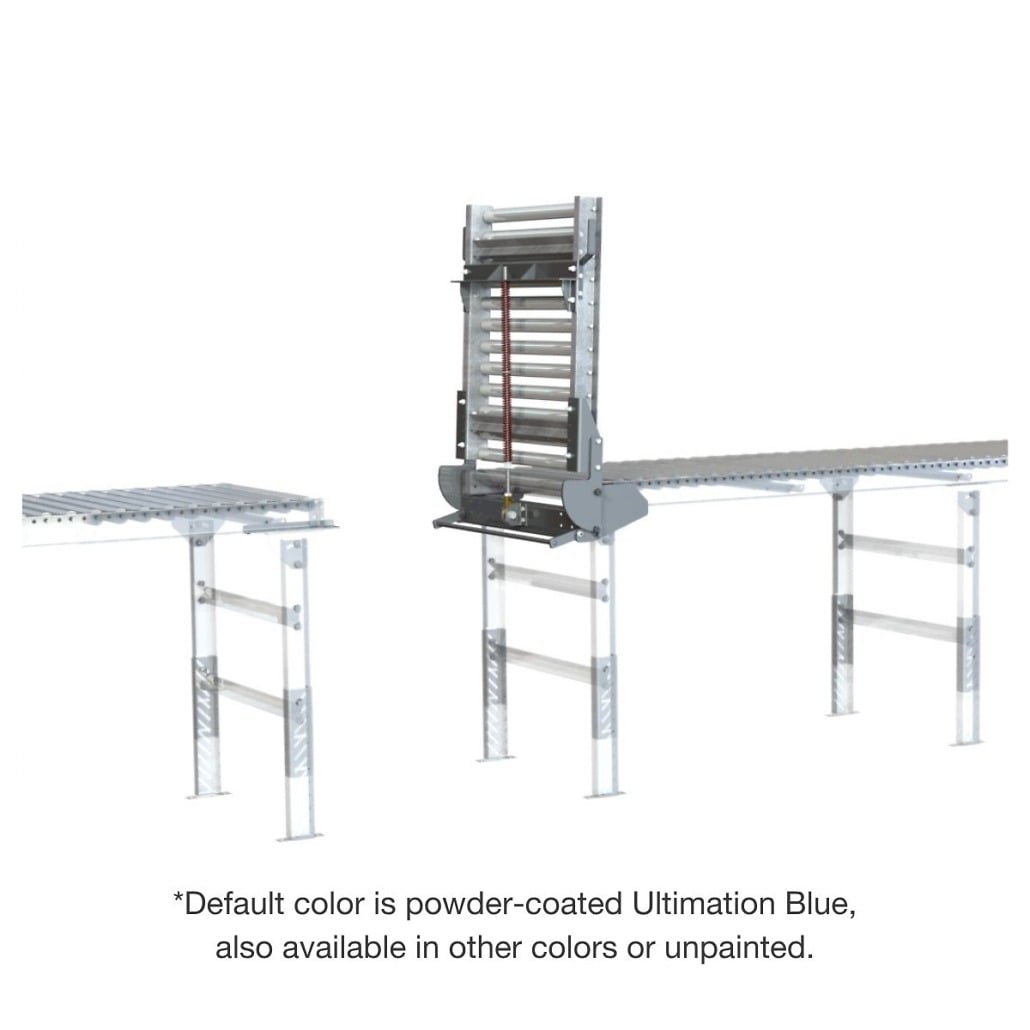

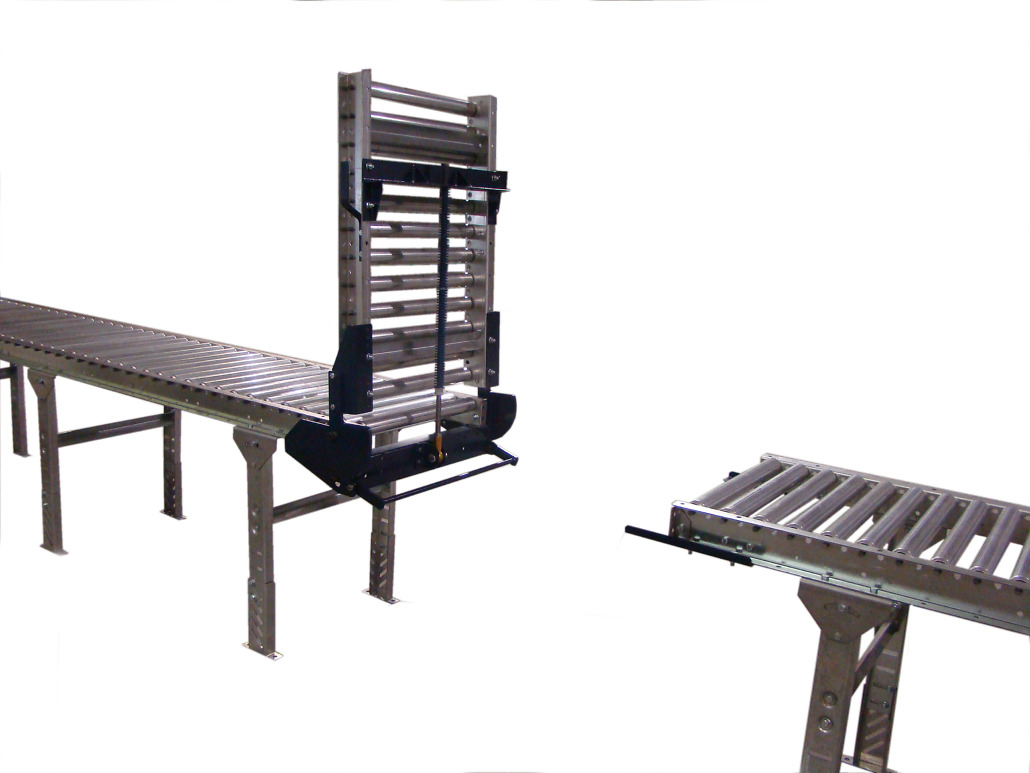

The Ultimation Spring-Assisted Gravity Conveyor Lift Gate is a gravity roller conveyor gate that provides direct walk-through access across gravity conveyor lines. In its closed position, the spring-loaded conveyor gate acts as another section of gravity conveyor, easily bolting into your conveyor line. When access is needed, simply lift the gate vertically to create a safe path through the conveyor line. The spring-assisted design improves ergonomics by significantly limiting the force required to lift the conveyor gate to 20 lbs., resulting in reduced operator fatigue and smoother warehouse workflow. Easily and quickly install the Ultimation Spring-Assisted Gravity Conveyor Lift Gate to your existing conveyor with its bolted construction.
Compatibility Note
To ensure seamless integration, your lift gate must match the width, roller diameter, and roller center spacing of your existing conveyor line.
- Standard 15″ BF and 21″ BF lift gates feature 1.9″ diameter rollers on 6″ centers.
- The heavy-duty 48″ BF lift gate features 2.5″ diameter, 11-gauge rollers on 3″ centers.
- Before ordering, verify that your existing conveyor section shares these exact roller diameters and center spacings to ensure compatibility.
Need custom gate sizes and configurations for gravity, MDR, CDLR, or lineshaft conveyors? Contact us and our staff will be happy to assist you.
Key Features
- Enables safe walk-through access: Operators can cross conveyor lines without uninstalling sections.
- Spring-assisted design: Limits lift force to 20 lbs.
- Quick and easy installation: Bolted construction allows for quick and easy installation without cutting or welding.
- Space-Efficient Solution: Eliminates the need for additional walkways or floor space dedicated to crossing points.
- Increased Productivity: Faster, easier access through the line helps streamline workflows and reduces downtime caused by inefficient movement around equipment.
- Integrates with Ultimation gravity conveyor lines of the same width and roller series.
Standard Configurations (15″ BF and 21″ BF)
Designed to integrate with Ultimation Medium Duty Gravity Conveyors.
- Between Frame Options: 15″ and 21″
- Rollers: 1.9″ dia., 16 ga. galvanized steel
- Roller Center Spacing: 6″
- Section Dimensions: 60″ total length with a 50″ lift section
- Clearance: 45-7/8″ walk-through opening
- Lift/open force: 20 lbs.
- Finish: Powder coated Ultimation blue, bolted gate construction
Heavy Duty Configuration (48″ BF)
Designed to integrate with Ultimation Heavy Duty Gravity Conveyors.
- Between Frame: 48″ BF
- Rollers: 2.5″ dia., 11 ga. galvanized steel
- Roller Center Spacing: 6″
- Section Dimensions: 60″ total length with a 50″ lift section
- Clearance: 45-7/8″ walk-through opening
- Lift/open force: 20 lbs.
- Finish: Powder coated Ultimation blue, bolted gate construction
SKU: URSG-GATE
