Itoh Denki Slide Open Gate (SOG2) | Automated Conveyor Gate System
The Itoh Denki Slide Open Gate (SOG2) is a slide open gate conveyor system that operates with push button activation. Transfers and gate operation are simplified by using motor driven rollers (MDR). Need enough space for a forklift to pass through? Using the Itoh Denki SOG2 back-to-back allows forklift access through the conveyor line.
The Itoh Denki Slide Open Gate (SOG2) offers a versatile conveyor slide gate system for automated facilities. With an adjustable line speed of 60-197 FPM and a 66-pound load capacity, this automated conveyor gate ensures your throughput remains high while providing necessary access points. This SOG2 is standard-built with a 15” between frame (BF) width and offers flexibility with two height ranges (24”–26” or 27”–31” TOR) and both PNP or NPN output types to match your existing control logic.
For wider between frame options, taller height requirements, and other custom builds, our sales team would be happy to assist you.
Key Features
- (2) 24V DC motors
- Simplified transfer and gate operation using MDRs
- Allows for convenient access to your conveyor line with a push of a button
- Manual activation available in case of a power outage
- Controlled with Itoh Denki IB-E03B and HBS-202-F-MD1 driver cards
- Minimum package size: 8.9″ (225 mm) x 8.9″ (225 mm)
Watch this video to see the Itoh Denki Slide Open Gate in action.
Standard Configurations:
- Width: 15” Between Frame (BF)

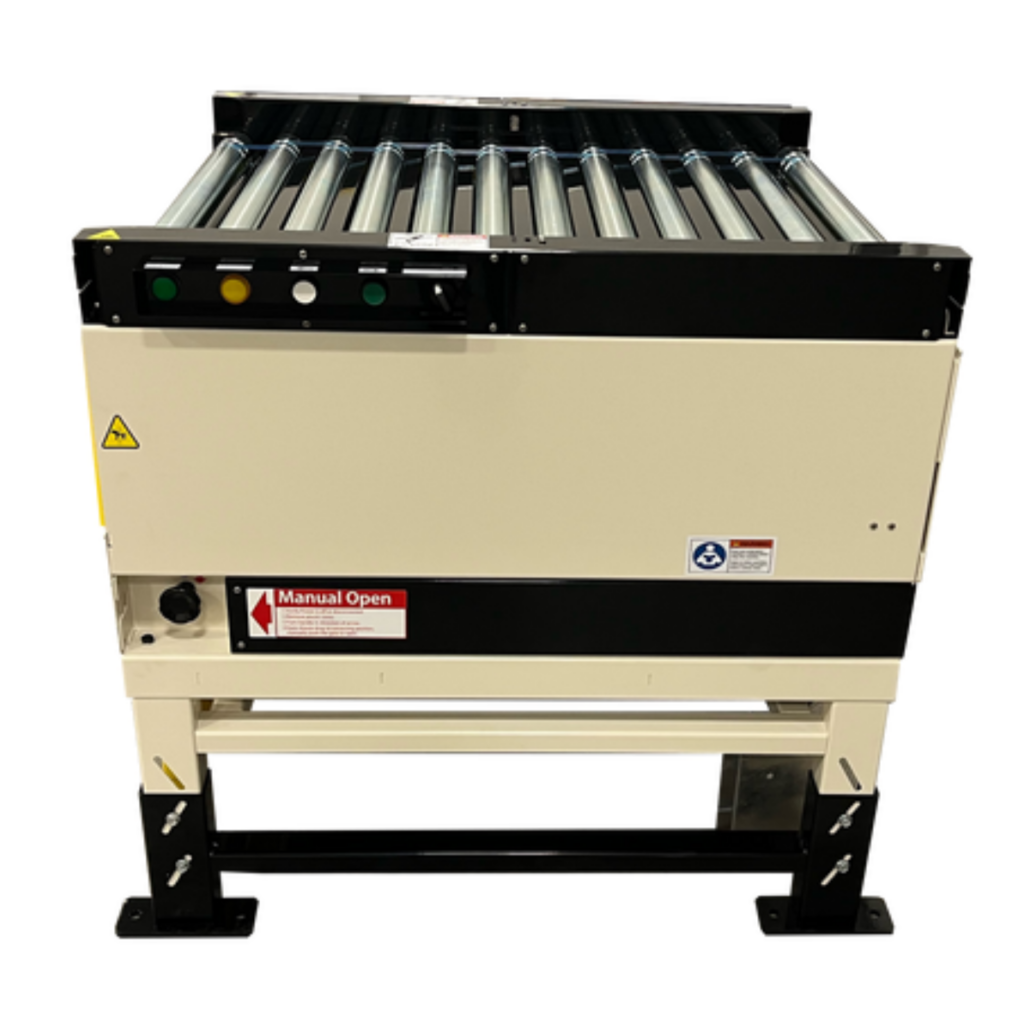

- Retracted Length: 36.26″

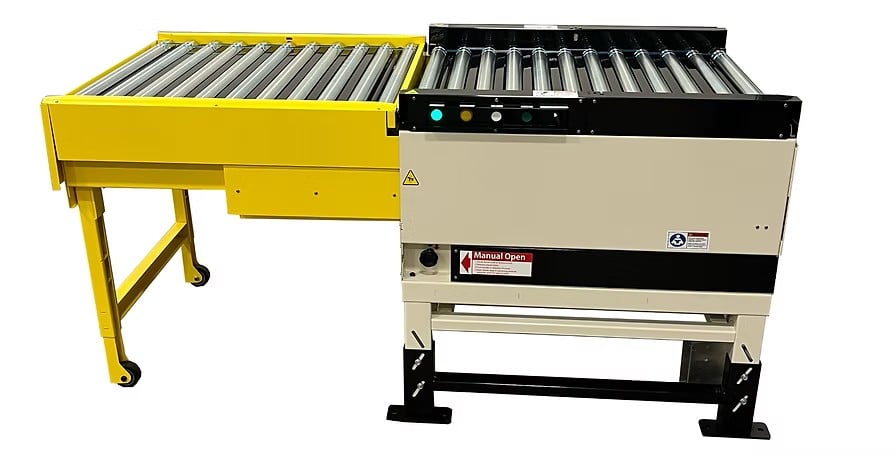

- Extended Length: 70.38″
- Height Options: 24”–26” TOR or 27”–31” TOR (31″–36″ TOR available for custom order)
- Logic/Output: Available in both PNP and NPN types
- Roller diameter: 48.6 mm / 1.9″ OD
- Max. load weight: 66 lbs.
- Line speed: 60-197 FPM
- Power voltage: 24V DC
- Ambient temperature: 32~104°F (0~40°C)
- Humidity: Below 90% RH (no condensation)
- Atmosphere: No corrosive gas
- Vibration: Below 0.5G
- Installation: Indoor
