Details

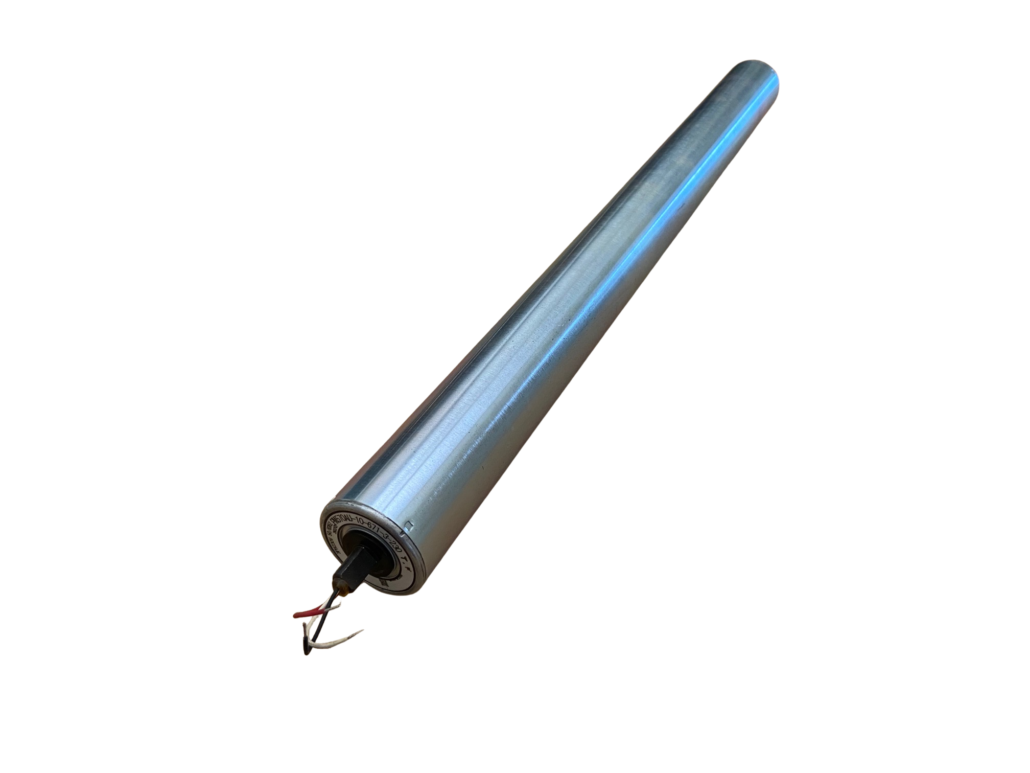

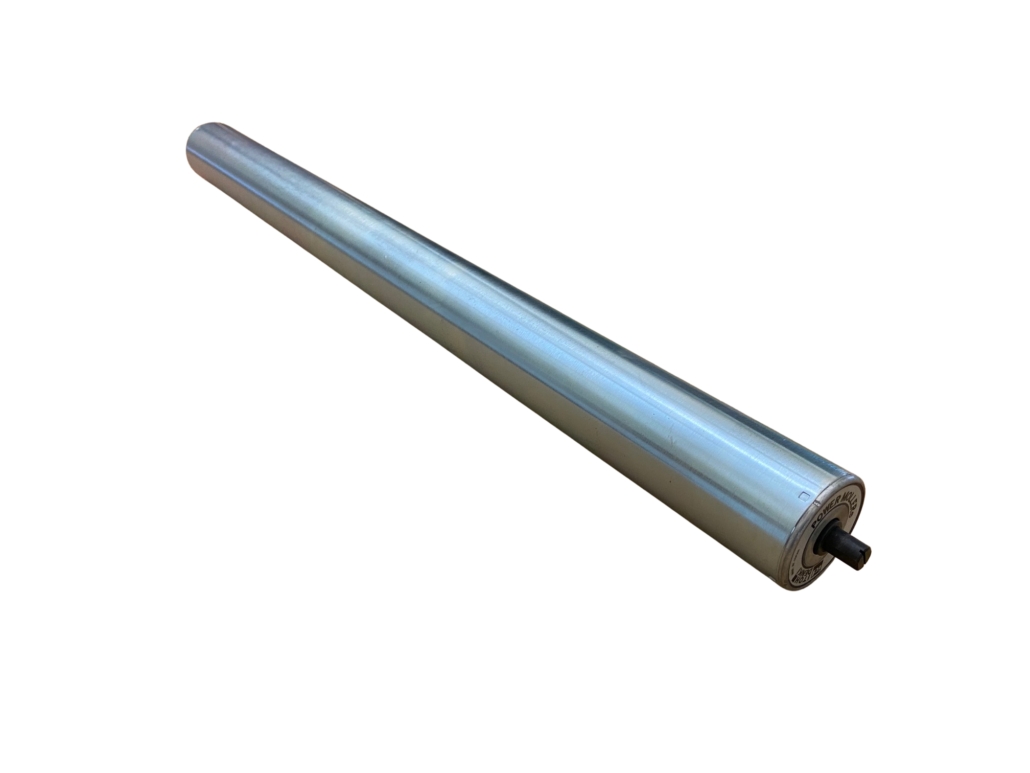

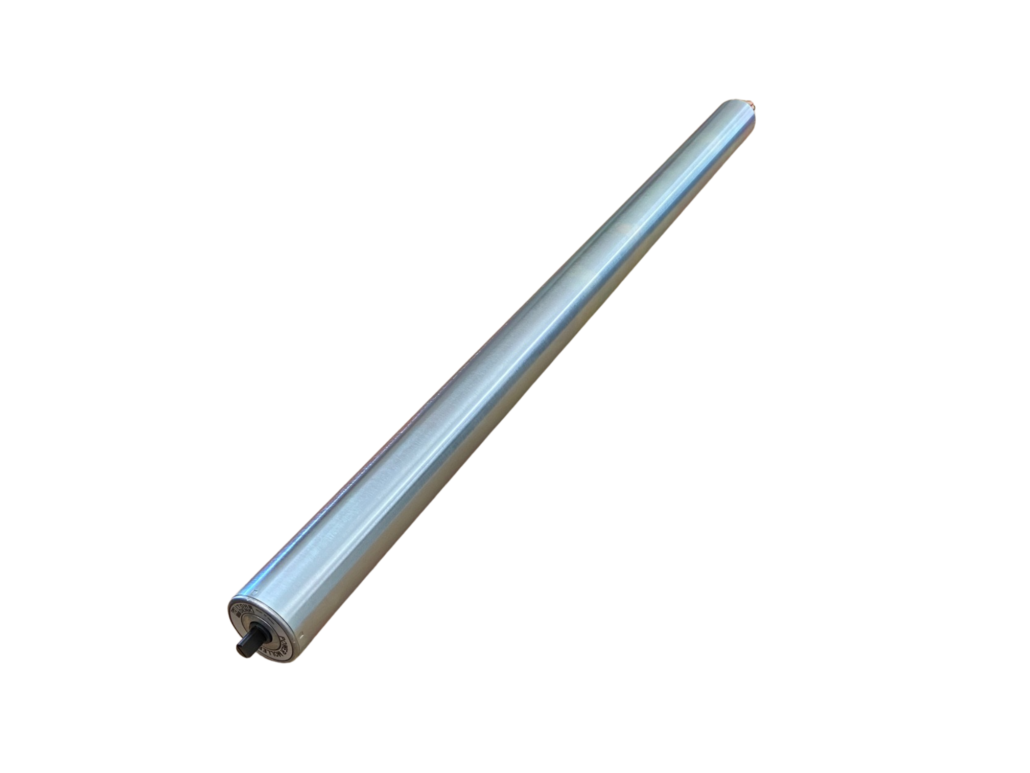

The Itoh Denki PM570AU serves as a direct replacement motor-driven roller (MDR) for the Ultimation Automated Tire and Wheel Conveyor Trailer. The PM570AU is powered by 230V AC motors which have special features designed for zero-pressure accumulation systems.
Built with a 2.24 inch (57 mm) diameter STKM12 steel tube and a protective trivalent chromate finish, its space-saving internal motor design eliminates the need for external motor mountings.
The motor’s high-impedance and lower torque allow the roller to stall safely for extended periods. As a result, this prevents the roller from forcefully pushing accumulated items against one another, making the PM570AU ideal for applications that require stall periods.
Key Features
- Continuous Stall Safety: Equipped with a high-impedance, low-current motor engineered to remain continuously locked without risking motor burnout.
- Zero-Pressure Accumulation: Ideal for line accumulation applications where items need to pause without building up damaging line pressure.
- Heavy-Duty AC Power: Runs natively on AC power.
- Space-Saving Design: Fully integrated internal motor eliminates external drive components and bulky side-mount assemblies.
Standard Configuration
- Between Frame Options:

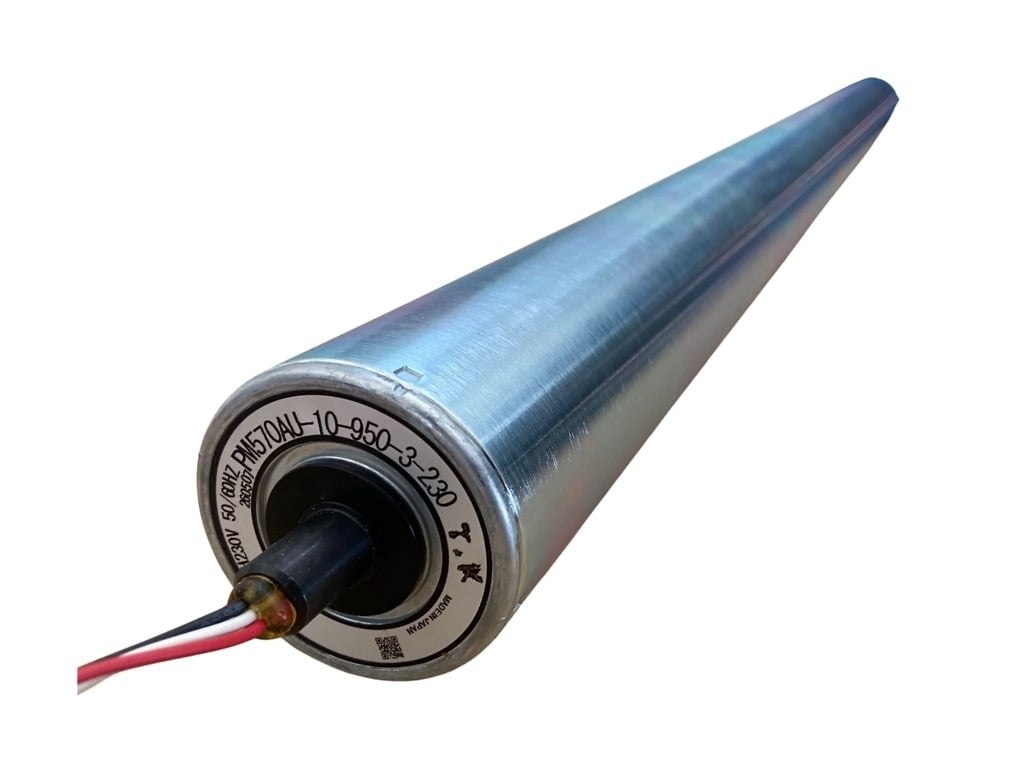

- 38″ BF / 950mm tube length (PM570AU-10-950-3-230)
- 27″ BF / 671mm tube length (PM570AU-10-671-3-230)
- Roller Diameter: 2.24 in (57 mm)
- Tube Wall Thickness: 0.059 in (1.5 mm)
- Shaft: 0.47 in (12 mm) diameter spring loaded
- Tube Finish: Zinc-plated steel with trivalent chromate processing
- Voltage: 3-Phase 230v
- Speed Code: 10
- Includes A-200 Terminal Block
SKU: PM570AU-10
