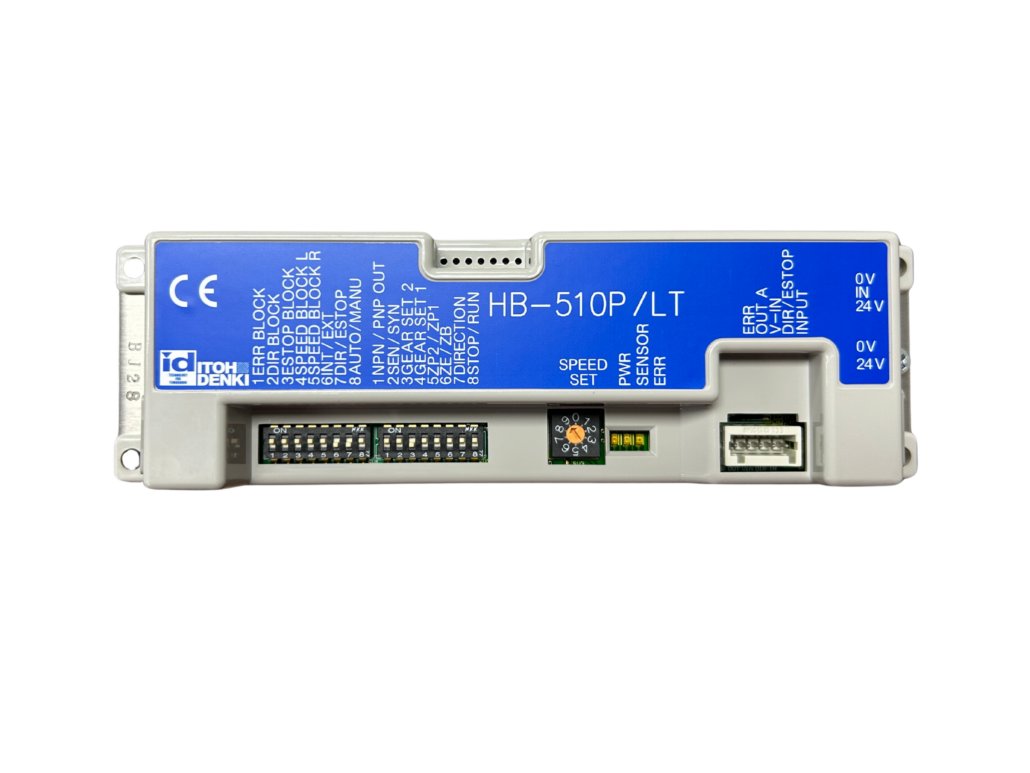

Itoh Denki HB‑510‑LT Low Temperature Driver Card
The Itoh Denki HB‑510‑LT low temperature driver card has built-in logic and zero-pressure accumulation for automating freezer and cold storage conveyor systems, operating at temperatures as low as ‑22°F. It is designed for use with Itoh Denki low temperature motorized rollers and integrates with Itoh Denki 24V DC systems. Aside from ZPA and built-in logic, it also has 10 selectable speeds, thermal overload protection, and a lead‑free design.
This low‑temperature MDR driver card can be used as an Itoh Denki driver card replacement when you relocate conveyors into cold rooms or freezer environments.
For applications requiring basic motor control without built-in ZPA logic, view the Itoh Denki CB-016-LT model.
IMPORTANT: This driver card cannot be reconfigured to PNP or NPN output. Please select your required output when placing your order.
Product Specifications
- Cold-rated to -22°F (-30°C)
- Works with FS, FE, and high-torque FP series motors
- Each Itoh Denki HB-510-LT can drive one motorized roller
- Run hold timer added to the Forcible RUN input
- Built-in logic removes the need for external timers and secondary sensor positioning
- Integral indexed rotary switch provides easy speed adjustment without the need for tweaking
- More LED functionality to communicate operating and error statuses
- Selectable automatic or manual recovery for thermal overload protection
- Motor lock protection shuts motor down if it is locked for at least 4 seconds
- Lead free design for RoHS conformity
General Features
- Logic for general zero pressure accumulation (ZPA) control is built-in
- Direct connection for a photo-sensor to both power it and receive its output signal
- Easy connection between adjacent HB-510s with communication cables simplifies wiring
- Selectable singulated or slug (train) release modes for ZPA function
- Flexible Zone Recognition (patented) to handle long articles which simultaneously block multiple sensors
- Synchronized speed variation to simultaneously adjust the speed of the rollers with a single external speed control signal
- Stable speed function to ensure that different weight articles travel at the same rate
- Fire-resistant ABS enclosure protects the internal components
SKU: HB-510-LT, MPN: HB-510-LT
