Details

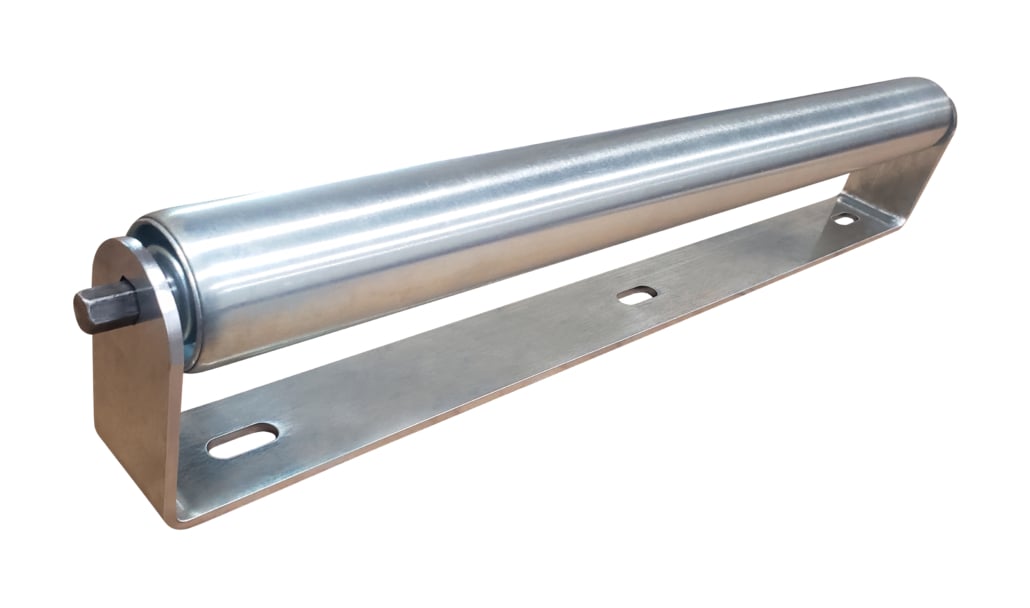

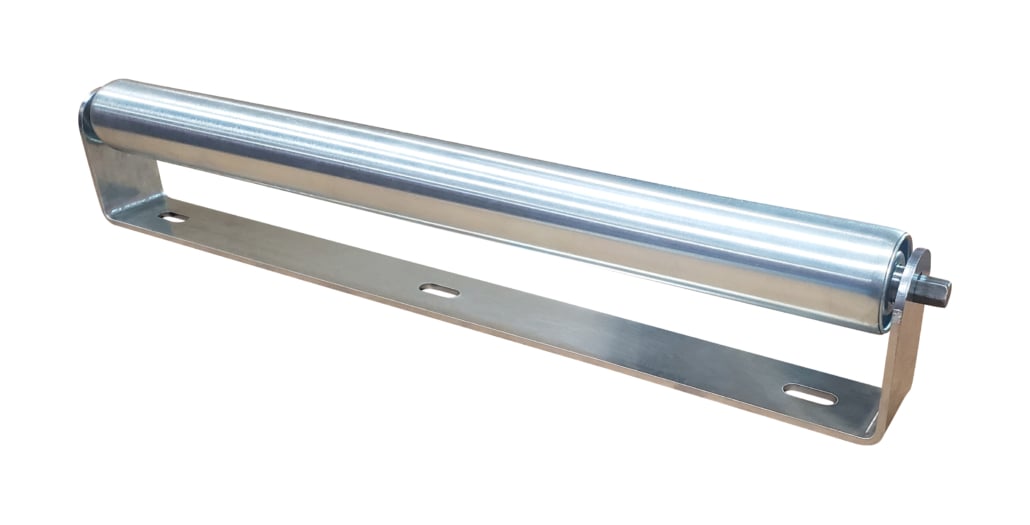

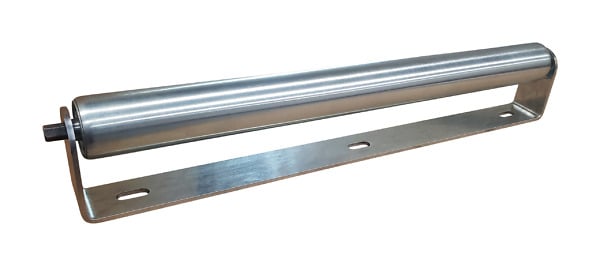

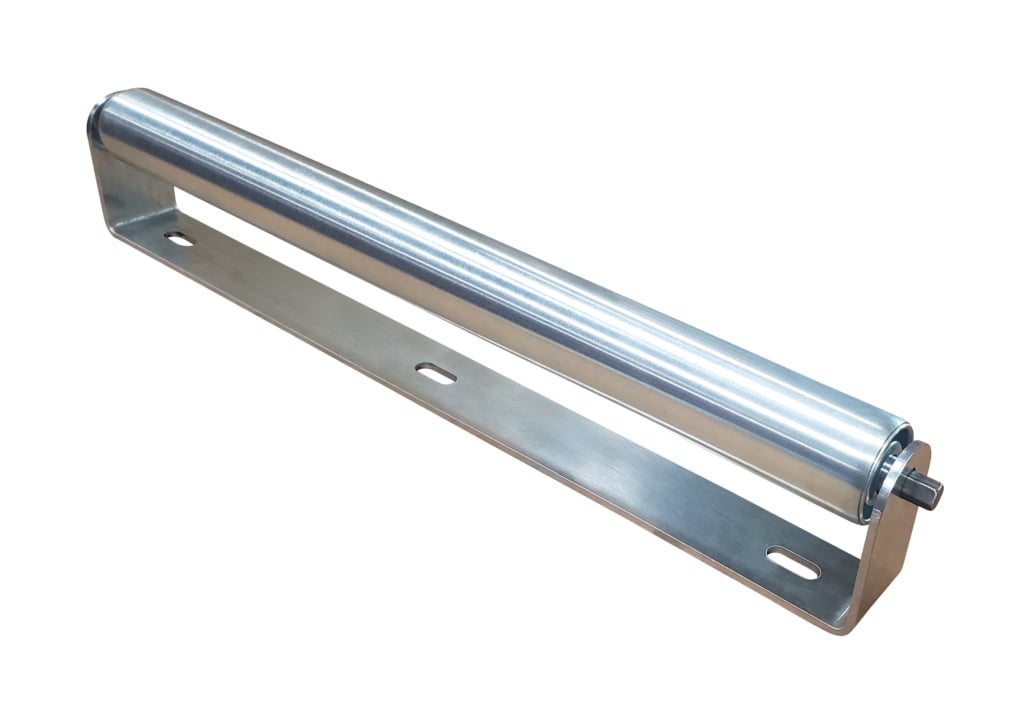

Heavy Duty Conveyor Roller with Bracket | 21″ Long | Galvanized
The Ultimation Heavy Duty Roller with Bracket Set is an affordable solution to expand your workspace! Create your own conveyor, woodworking infeed/outfeed roller stand, or other workspaces. Durable, 250-pound capacity. The conveyor roller is spring-loaded on one end and is removable from the bracket.
Product Specifications
- 1.9″ galvanized roller included
- 2-hole steel mounting bracket, 15/32″ for 7/16″ axle
- (3) mounting holes, 13/32″ opening for 3/8″ screws or bolts
- 8 Ga. Galvanized roller bracket
- 16 Ga. Galvanized Steel roller tube
- 21″ Between Frame
- 20-17/32″ tube length (rolling surface)
- 20-7/8″ overall cone
- Crimped, oiled bearings
- 7/16″ hex mild steel axle, 22-1/4″ long
- Spring retained on one end
- Overall height from the bottom of the bracket to the top of the roller is 3.79″
- 250-pound max. load capacity
- Weight: 5.4 pounds
- Hardware not included
To see more conveyor rollers and roller bracket sizes we stock, please click here.
Part Number: 190R-21-BR, MPN: UI190R-21-BR, GTIN: 00818070021456
Ultimation Gravity Conveyors Catalog

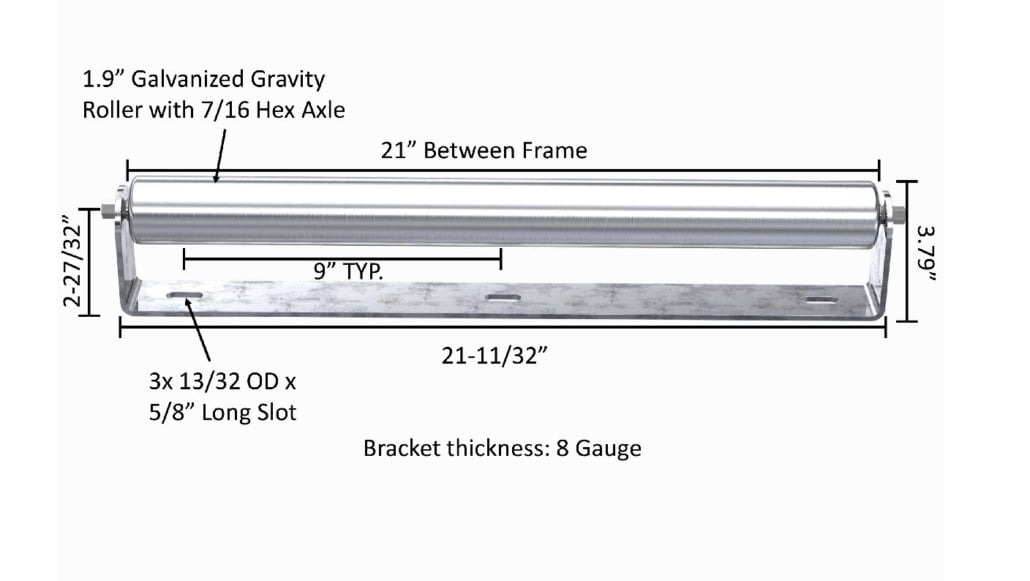

Heavy Duty Roller 21″ BF Bracket Drawing
