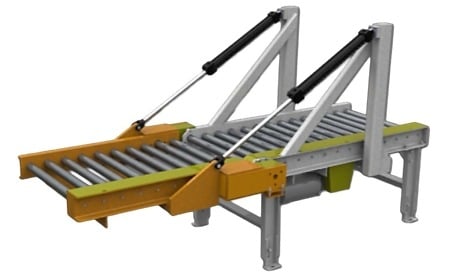

Heavy-Duty CDLR Conveyor with Pneumatic Lift Gate | Includes Motor and Supports | 48” EW x 52” BF x 60.876” OAW x 8’ L | 6” Centers
Ultimation’s Chain Driven Live Roller Conveyor (CDLR) is an excellent solution for transporting large and heavy products such as crates, drums, and pallets. This plug-and-play CDLR is equipped with jackbolt style conveyor supports that provide a 30” top of roller (TOR) measurement that adjust +/- 2”. The pneumatic gate lifts a portion of the conveyor up and out of the walk, creating a safe walkway through your conveyor line to reduce congestion on your plant floor and provide safe access points for maintenance.
This liftgate uses pneumatic technology as opposed to hydraulic technology. The main difference being that pneumatics employ compressed gas (usually air), as opposed to hydraulics which employ pressurized liquids. Due to this, the pneumatic lift gate operates at a much lower pressure, is lighter in weight, moves at a higher speed, avoids cavitation, and is much more economical.
For wider between-frame options, taller height requirements, or other custom specifications, our sales team is more than happy to assist you.
Key Features
- Chain driven live roller conveyor (CDLR) ideal for heavy-duty applications
- Built-in lift gate to create safe walkthrough lanes for easy access
- Pneumatic gate technology to increase speed while keeping cost low
- Easily integrates and pairs with Ultimation’s CDLR conveyor series
- Use back-to-back to create a walkway for safe forklift access through your line
- Sprocketed rollers and roll-to-roll chain system suitable for oily conditions where other conveyors may not operate efficiently
Standard Configurations
- 3′ long stationary section
- 5′ long gate section attached to stationary unit
- 48″ effective width
- 2-1/2” x 11 ga. rollers on 6” centers
- 11/16” hex axle, pin retained
- Sealed, shielded, greased bearings
- (2) 60A15 heat treated sprockets welded to tube
- 6” x 8.2# structural steel channel and 4” x 5.4# structural steel channel frames
- Rollers mounted high on idler side
- Welded construction
- Paint color: Ultimation blue with safety yellow guards
- 30FPM maximum speed
- Drive mounted side high, center: right-hand flow
- 1/2 HP, 208-230/460 VAC/3PH/60HZ motor
- Bolt-on 4” x 5.4# steel channel supports for 30” top of roller (TOR) measurement
- Jackbolt style support foot allowing for +/- 2” adjustment
- Pneumatic overhead lift for drawbridge style lift gate
- Includes mounted and plumbed filter regulator, as well as 115 VAC solenoid valve
- Does not include controls, please contact our sales team for a custom quote if controls are required
Watch the Chain Driven Live Roller Conveyor with Lift Gate in Action
SKU: UCDLR25-48-GATE
