Tri-Tronics Sensor Connector Cable | GEC-15 | Quick-Disconnect | 15′ Long | M8 4-Pin Female
The GEC-15 sensor connector cable from Tri-Tronics features a quick-disconnect M8 4-pin female connector. Measuring 15′ long (4.6m), this 4-wire cable is an ideal solution for connecting your sensors. The EMI shielding provides protection against cyber intrusion as well as external electrical noise and interference.

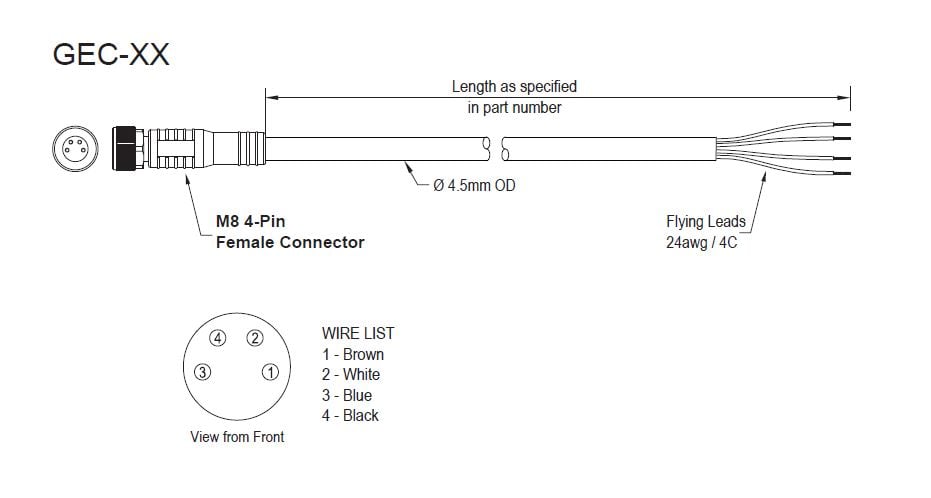

Features and Dimensions of GEC-15:
- Quick-disconnect sensor connector cable
- 15′ long (4.6m)
- M8 4-pin female connector
- 24awg / 4C
- Shielded
What are shielded cables?
Cable shields are additional conductors that are added to a cable or wire in order to isolate electromagnetic fields and avoid electromagnetic interference (also referred to as EMI). These shields are often placed over groups of conductors, individual conductors, and even the entire bundle of conductors within the cable itself. Shielding is a critical aspect in the cable’s design when installed near sensitive electronics. Cable shielding can affect all four aspects of EMI; conducted susceptibility, radiated susceptibility, conducted emissions, and radiated emissions.
Part Number: UIGEC-15, MPN: UI19658, GTIN: 00818070026734
